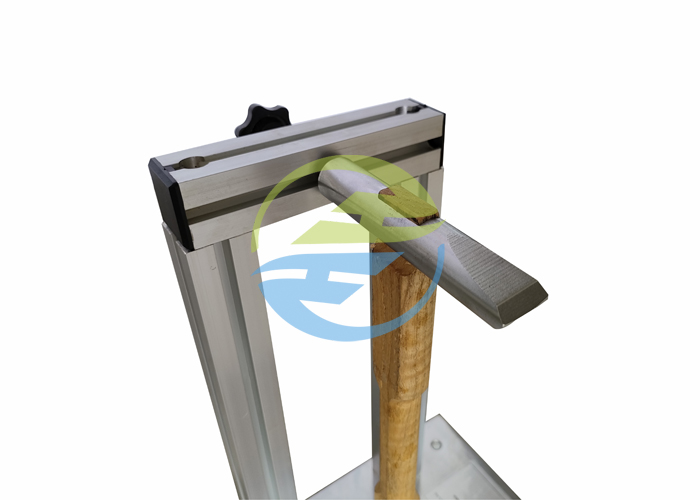

YDT757 Hammer Test Device Impact Height 300mm Hammer Blade Width 20mm

Name: YDT757 Hammer Test Device Impact Height 300mm Hammer Blade Width 20mm
Brand: HongCe
Price: 1 USD

Quality YDT757 Hammer Test Device Impact Height 300mm Hammer Blade Width 20mm for sale

Brand Name : HongCe

Model Number : HTD-1

Certification : Calibration Certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 25 set per month

Delivery Time : 15 days

Packaging Details : Plywood

The mass of hammer : 210g±1g

Impact Height : 300mm

Thickness of the base : 15mm

Hammer Blade Width : 20mm

Dimension of the base : 250mm*250mm

Standard : YDT757

Warranty : 1 Year

Product name : Hammer Test Device

Contact Now

YDT757 Hammer Test Device, Impact Height 300mm, Hammer Blade Width 20mm

The device shall be installed on a stable wooden test bench, and the test surface shall be kept at the same height as the hammer base.
The test piece shall be placed horizontally, the hammer head shall face the center of the bench, the hammer handle shall fall freely after being perpendicular to the plane of the base, strike 5 points in parallel at an interval of 4mm, and check the surface state of the zinc layer. The striking point shall be 10mm away from the end, and the striking place shall not be struck twice at the same time.

Standard: YDT757

Application: This device is suitable for the adhesive force test of hot dip galvanizing coatings.

Test sample: Electroplating, tower similar products

Feature: The free fall hammer hit the sample to test whether the galvanized layer meet the standard requirements. This product is suitable for product quality inspection and control.

Parameters:

1. The mass of hammer: 210g±1g

2. The vertical height from the hammer centre line to the base surface: 300mm±1mm

3. The material of the hammer handle: oak

4. Base: 250*250*15mm. provide level bubble, adjustable leve

Technical parameters:

The mass of hammer	210g±1g
The vertical height from the hammer centre line to the base surface	300mm±1mm
The material of the hammer handle	oak

YDT757 Hammer Test Device Impact Height 300mm Hammer Blade Width 20mm
